BGP Outside Attractions include Tracks, Rides, and Mini Golf

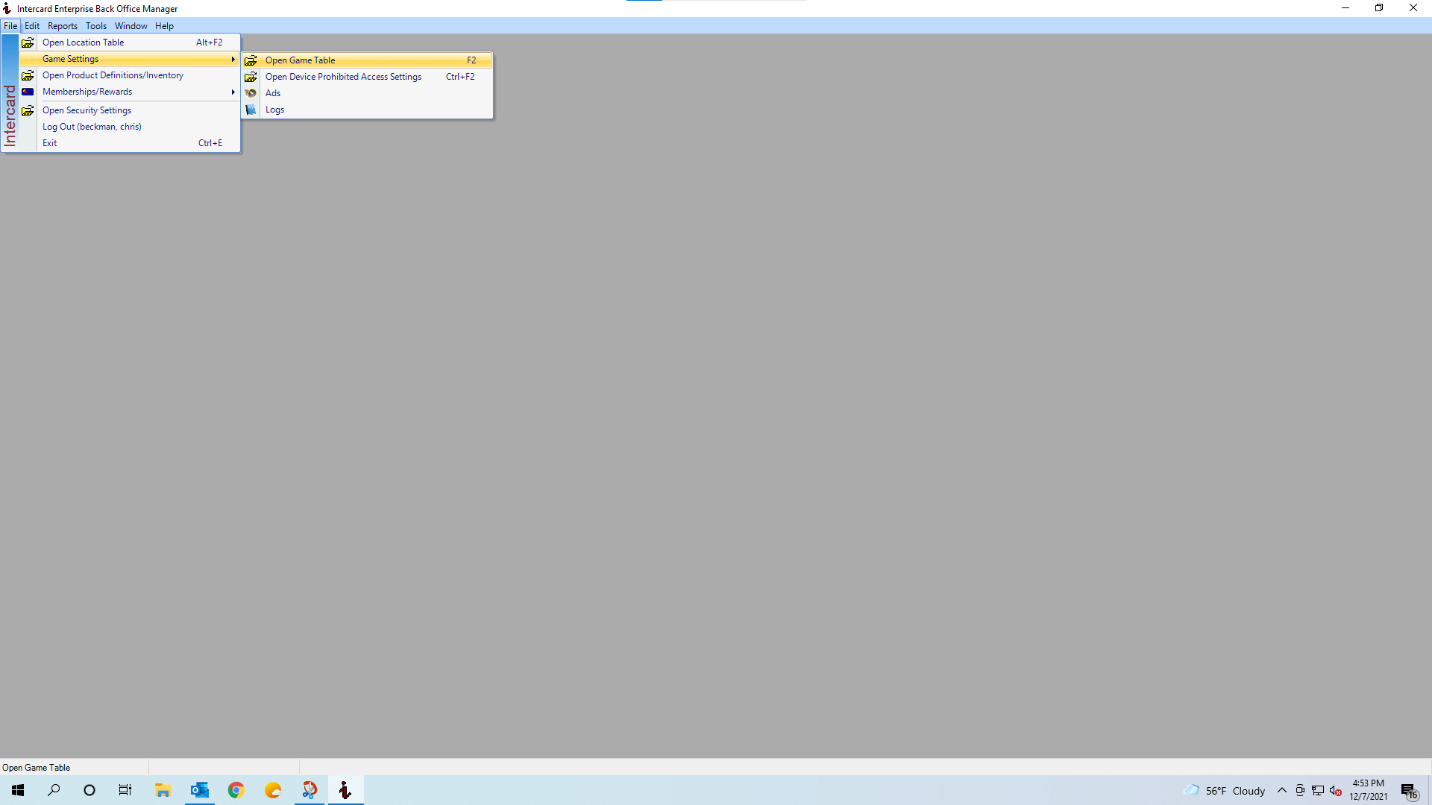

File> Game Settings> Open Game Table>

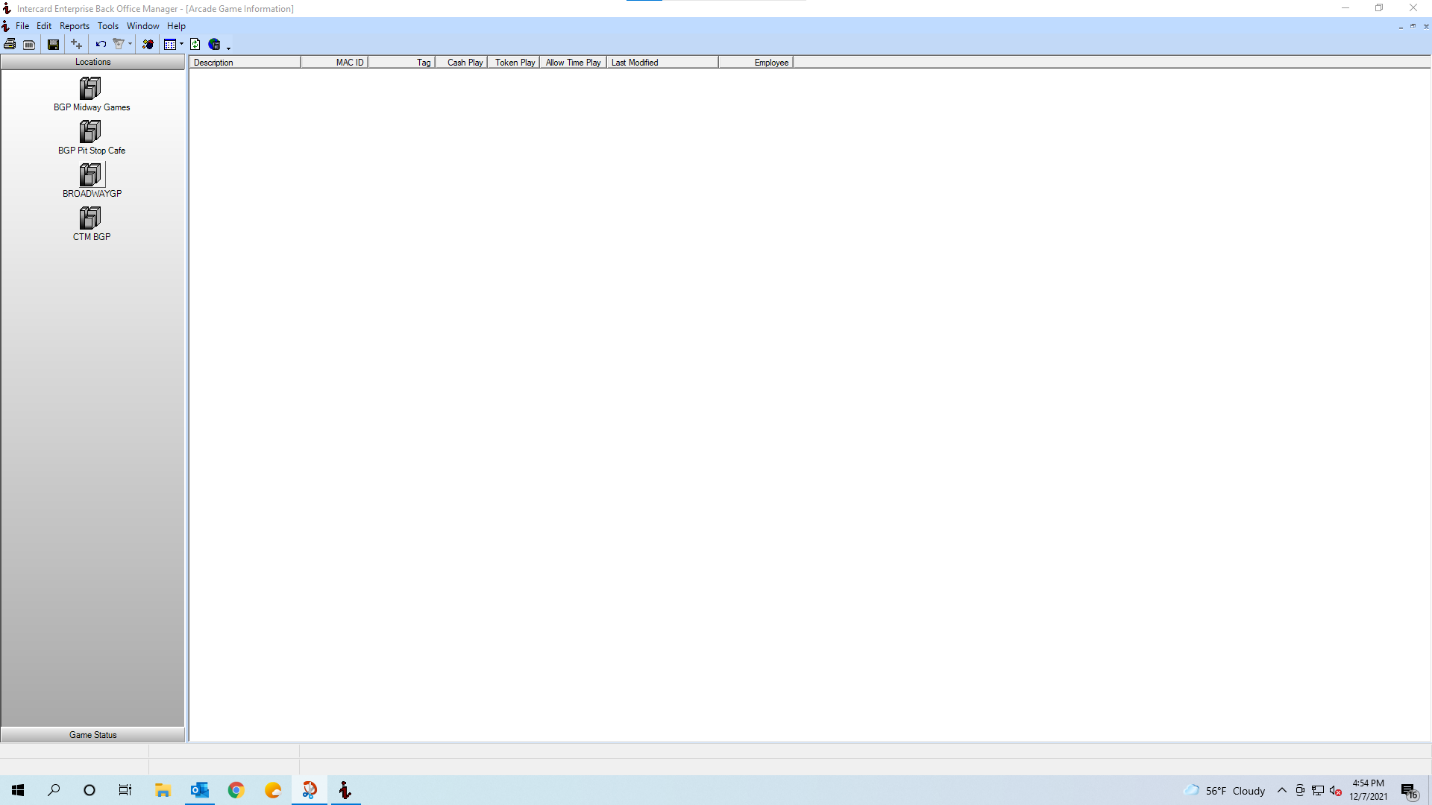

Select the BROADWAY GP Icon under Locations
Select the ++ Icon to a New Attraction

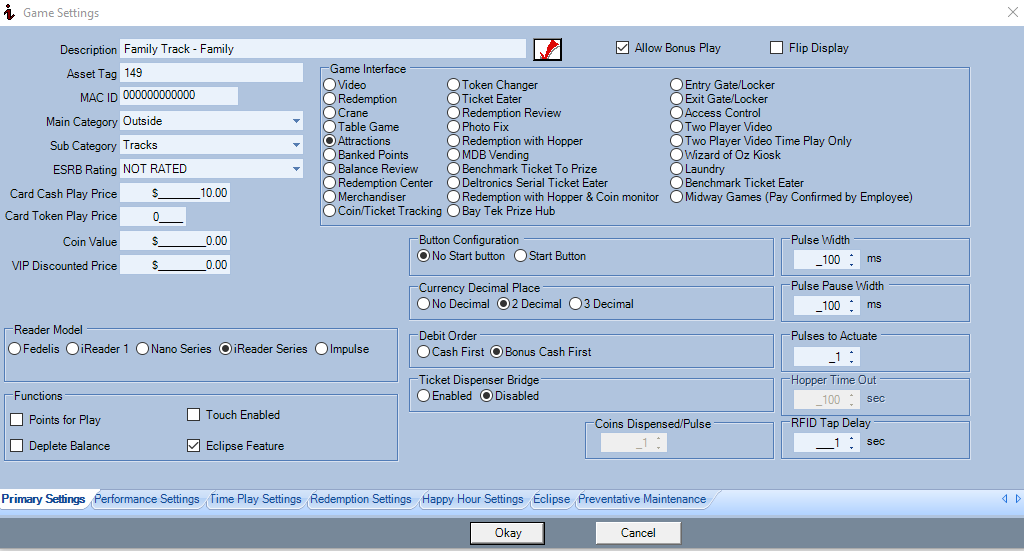

Primary Setting Tab
<Description> field- name of the Attraction
<Asset Tag> field- Automatically populate
<MAC ID> field- found on the back of the Reader
If you don’t know the ID, Enter all zeros
<Main Category> field - Choose “Outside” from the drop-down menu
<Subcategory> field- Choose the type of Attraction from the drop-down menu
<ESRB Rating> field- Choose “NOT RATED” from the drop-down menu
<Card Cash Price> field- Enter the cash value of the Attraction (2 times the current ticket price)
<Card Token> field – Enter 0
<Coin Value> field- Enter 0
<VIP Discounted> field- 0
<Reader Model> option- Choose iReader Series
<Functions> option- Choose Eclipse Feature
<Allow Bonus Play> option- Select
<Flip Display> option- Deselect
<Game Interface> option- Choose Attractions
<Button Configuration> option- Choose No Start button
<Currency Decimal Place> option – 2 Decimal
<Debit Order> option- Choose Bonus Cash First
<Ticket Dispenser Bridge> option - Choose Disabled
<Coins Dispersed/Purse> field- Not Selectable
<Pulse Width> field- _100 ms
<Pulse Pause Width> field- _100 ms
<Pulses to Actuate> field- _1
<Hopper Time Out> field- Not Selectable
<RFID Tap Delay> field- _1 sec

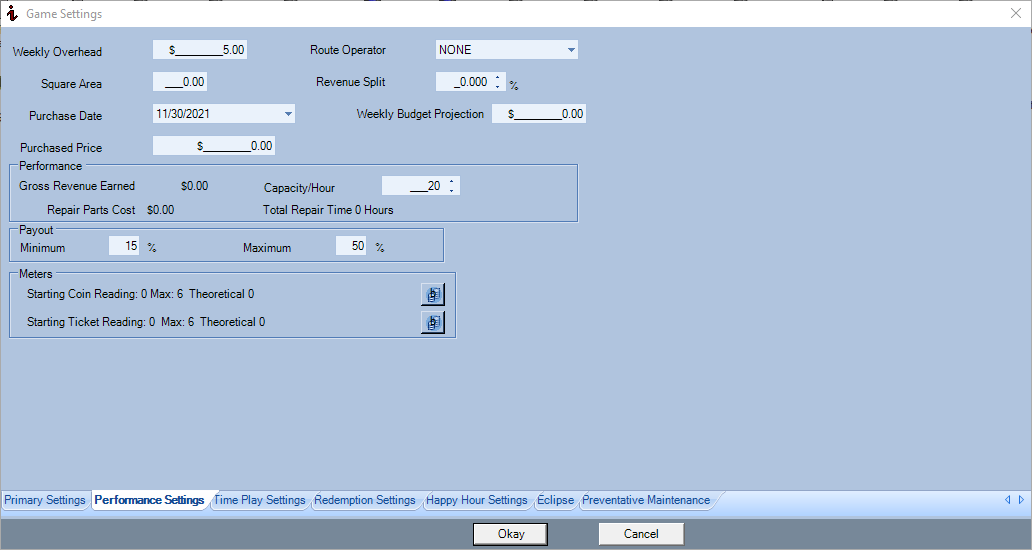

Performance Settings Tab
<Weekly Overhead> field- Not Applicable to this SOP
<Square Area> field- Not Applicable to this SOP
<Purchase Date> field- Not Applicable to this SOP
<Purchase Price> field - Not Applicable to this SOP
<Route Operator > field – Not Applicable to this SOP
<Revenue Split> field – Not Applicable to this SOP
<Weekly Budget Projection> field – Not Applicable to this SOP
Performance
<Capacity/Hour> field- Not Applicable to this SOP
Payout
<Minimum %> field- Not Applicable to this SOP
<Maximum %> field- Not Applicable to this SOP
Meters

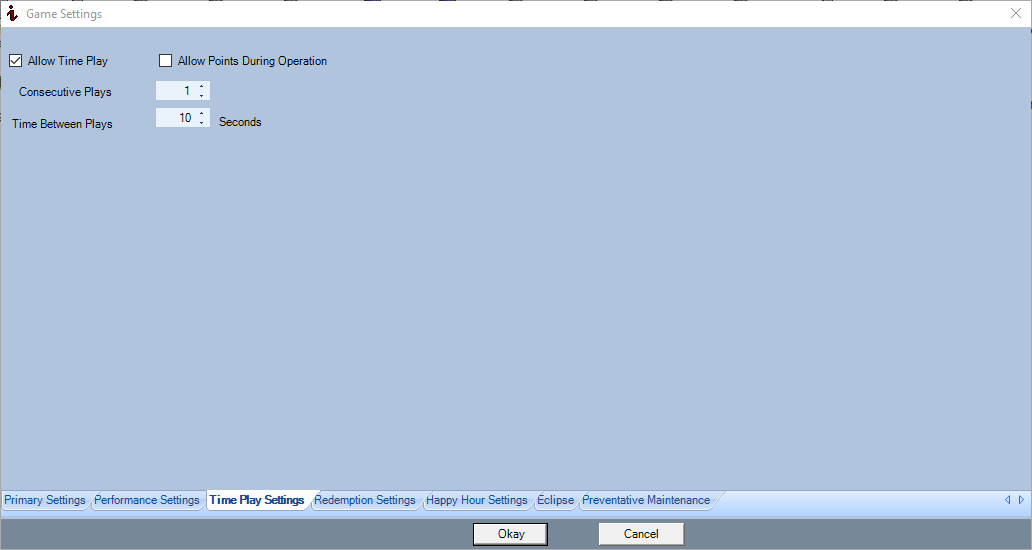

Time Play Settings Tab
<Allow Time Play> option- Select
<Allow Point During Operation> option- Deselect
<Consecutive Plays> field- 1
<Time Between Plays> field – 10 Seconds

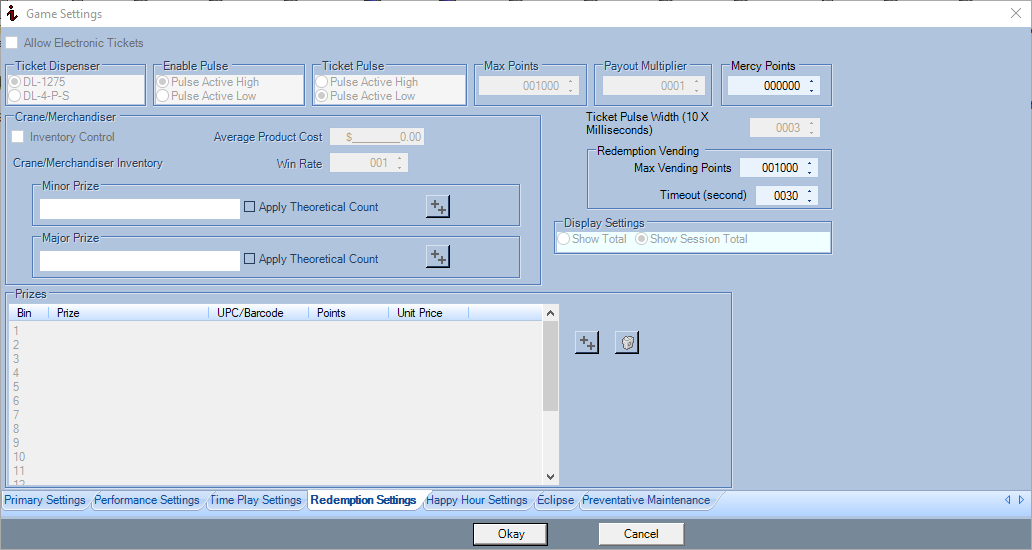

Redemption Settings Tab
This Tab is ONLY used when “Redemption” is chosen from the <Game Interface> options list
<Allow Electronic Tickets> option- Not Applicable to this SOP
<Ticket Dispenser> option- Not Applicable to this SOP
<Enable Pulse> option- Not Applicable to this SOP
<Ticket Pulse> option- Not Applicable to this SOP
<Max Points> field – Not Applicable to this SOP
<Payout Multiplier> field- Not Applicable to this SOP
<Mercy Points> field- Not Applicable to this SOP
Crane/Merchandiser
<Inventory Control> option- Not Applicable to this SOP
<Average Product Cost> field- Not Applicable to this SOP
<Win Rate> field- Not Applicable to this SOP
<Minor Prize> field- Not Applicable to this SOP
<Apply Theoretical Count> option-
<Major Prize> field- Not Applicable to this SOP
<Apply Theoretical Count> option- Not Applicable to this SOP
<Ticket Pulse Width 10 X Milliseconds> field- Not Applicable to this SOP
Redemption Vending
<Max Vending Points> field- Not Applicable to this SOP
<Timeout (Second)> field- Not Applicable to this SOP
<Display Settings> field- Not Applicable to this SOP

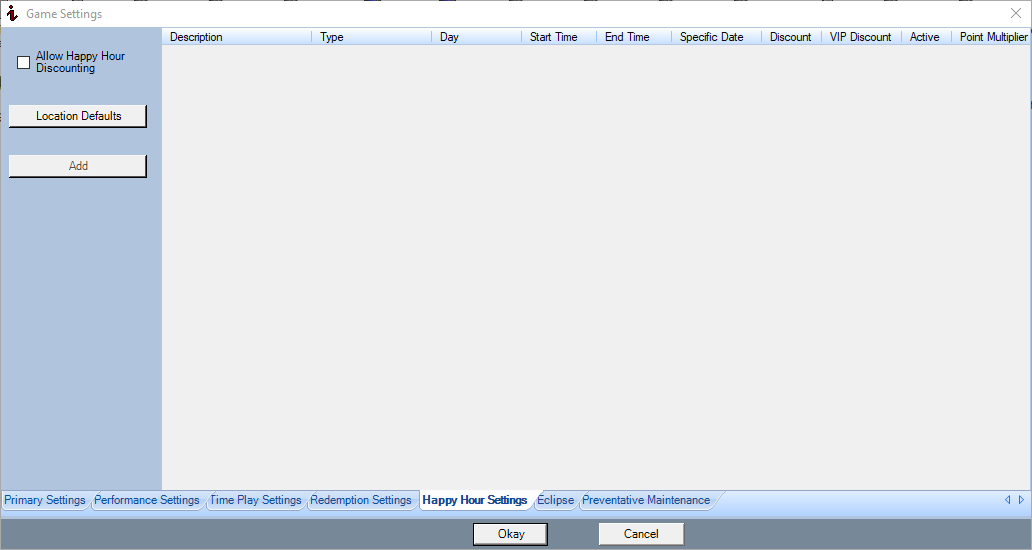

Happy Hour Settings Tab
<Allow Happy Hour Discounting> option- Not Applicable to this SOP
<Location Defaults> button- Not Applicable to this SOP
<Add> button- Not Applicable to this SOP
Eclipse Tab
Eclipse Options
<Base Color> field- Choose “Cycle” from the drop-down menu
<Happy Hour Color> field- Choose “Cycle” from the drop-down menu
Preventative Maintenance Tab
This Tab will show all Attractions that have been place offline, the description of the task performed, and the Time/Date/Duration it was offline
